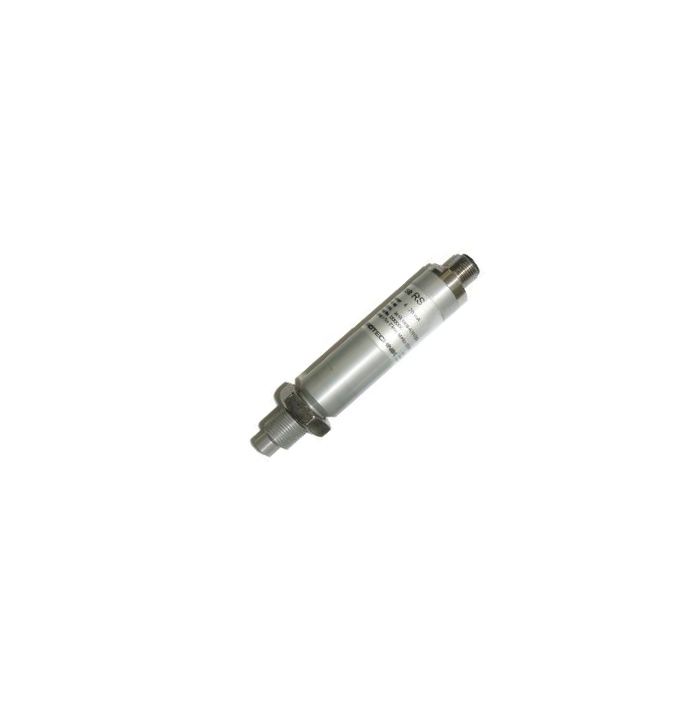

HySense RS 510 Inductive sensor M 14x1, IP 67 4…20mA, M 16 6p m

The high-precision and dynamic speed sensor HySense® RS 510 detects contactless rotating ferromagnetic turbine rotors, gears and similar components and generates a 4 ... 20 mA current output signal. This detection is based on the induction laws. Using an intelligent concept allows to scale and linearize this output signal already on the sensor side. The realization as a 2-wire current loop sensor offers a high immunity to interference combined with the simplest connection concept and extends the operating time of battery powered measuring instruments effectively. Due to the constructive design, it is a high IP rating achieved, so that an installation is possible in almost any application. This robust design also guarantees a high mechanical durability and completes the product.
